MONEL

Nickel-copper alloys for marine and chemical processing.

chat_bubbleGet a Free Quote

400

Ni ≥63%
Cu 28–34%
Fe ≤2.5%
Mn ≤2%
Si ≤0.5%
C ≤0.3%

R-405

Ni ≥63%
Cu 28–34%
Fe ≤2.5%
Mn ≤2%
Si ≤0.5%
C ≤0.3%
S 0.025–0.06%

K-500

Ni 63–70%
Cu 27–33%
Al 2.3–3.15%
Fe ≤2%
Ti 0.35–0.85%
Mn ≤1.5%
C ≤0.25%

INCONEL

Nickel-chromium superalloys for aerospace and gas turbines.

chat_bubbleGet a Free Quote

600

Ni ≥72%
Cr 14–17%
Fe 6–10%
C ≤0.15%

601

Ni ≥58%
Cr 21–25%
Fe Bal.
Al 1.0–1.7%
C ≤0.1%

625

Ni ≥58%
Cr 20–23%
Mo 8–10%
Nb 3.15–4.15%
Fe ≤5%
C ≤0.1%

718

Ni 50–55%
Cr 17–21%
Fe Bal.
Nb 4.75–5.5%
Mo 2.8–3.3%
Al 0.2–0.8%
Ti 0.65–1.15%
C ≤0.08%

INCOLOY

Nickel-iron-chromium alloys for high-temperature environments.

chat_bubbleGet a Free Quote

800H

Ni 30–35%
Cr 19–23%
Fe Bal.
Al 0.15–0.6%
Ti 0.15–0.6%
C 0.05–0.1%

825

Ni 38–46%
Cr 19.5–23.5%
Fe Bal.
Mo 2.5–3.5%
Cu 1.5–3%
C ≤0.05%

HASTELLOY

Nickel-molybdenum alloys for aggressive chemical environments.

chat_bubbleGet a Free Quote

C-22

Ni ≥56%
Cr 20–22.5%
Mo 12.5–14.5%
W 2.5–3.5%
Fe ≤6%
C ≤0.01%

C-276

Ni ≥57%
Cr 14.5–16.5%
Mo 15–17%
W 3–4.5%
Fe ≤7%
C ≤0.01%
Pipes

Product Name

Nickel Alloy Pipes (Seamless/Welded)

Outer Diameter

0.4-600

Wall Thickness

0.1-30

Length

12m, Customizable

Surface Finish

Customizable

Material Grade

ASTM B161, ASTM B163, ASTM B165, ASTM B167 ASTM B407, ASTM B423, ASTM B444 ASTM B535 ASTM B622, ASTM B677, ASTM B690 ASTM B729 ASTM B829 ASTM B983

Features

Excellent high-temperature and corrosion resistance with high strength. Suitable for harsh environments such as strong acids/alkalis and high temperatures.

Applications

Petroleum, chemical industry, high-pressure boiler, nuclear power, aviation, marine engineering, environmental protection engineering.

Pipes

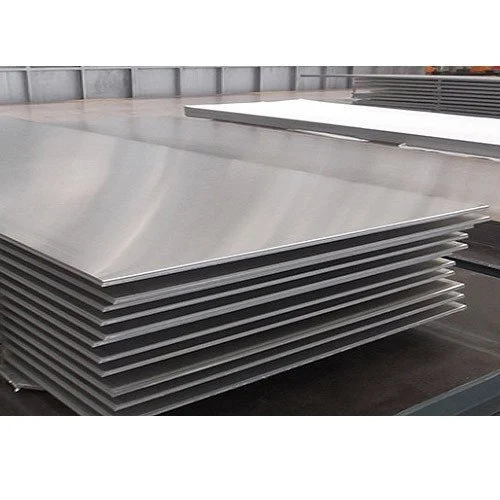

Sheets

Product Name

Nickel Alloy Sheets/Plates

Thickness

0.5-50

Width

500-1000

Length

700-6000

Surface Finish

2B, No.1, No.2, No.4, BA, 6K, Mirror Finished, 8K, Hair Line with PVC

Material Grade

ASTM A240 ASTM A480 ASTM A693 ASTM B127, ASTM B162, ASTM B168 ASTM B333 ASTM B409, ASTM B424, ASTM B434, ASTM B435, ASTM B443, ASTM B463 ASTM B536, ASTM B575, ASTM B582, ASTM B599 ASTM B620, ASTM B625, ASTM B670, ASTM B688 ASTM B709, ASTM B718, ASTM B755, ASTM B688 ASTM B814, ASTM B818, ASTM B872 ASTM B906

Features

Excellent oxidation resistance, corrosion resistance, cold and thermal fatigue resistance, excellent heat and cold process (cupling, bending) performance and welding performance. It can be used in acid, alkali, and salt corrosive atmospheres, and can meet the requirements of -253℃～ 1300℃ high temperature, abrasion and other harsh environments.

Applications

Combustion chambers of aerospace engines, flame tubes in afterburners, mounting edges, gas ducts, partitions, afterburner cylinders and other parts, as well as high temperature anti-oxidation and load-bearing components such as bellows for various purposes, the plate springs used in special environments, gas ducts, seals and other structural parts with higher requirements. It has also been successfully applied in energy, petroleum, chemical, exploration, nuclear industry, metallurgy, machinery, electric power and glass building materials

Sheets

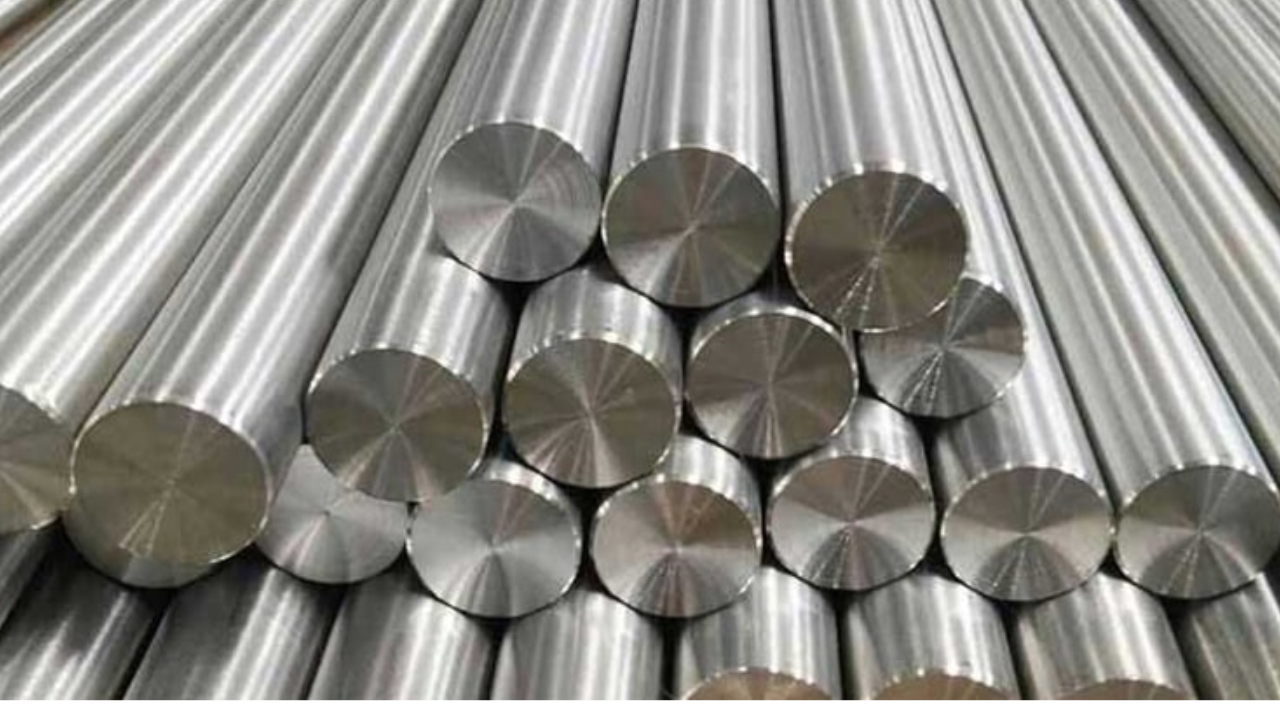

Bars

Product Name

Nickel Alloy Bars

Diameter

4-300

Length

Customizable

Surface Finish

Bright, Polishing, Mirror, Hairline, Pickled, Peeled, Black

Material Grade

ASTM A484, ASTM A484M ASTM A638, ASTM A638M ASTM B160, ASTM B164, ASTM B166 ASTM B335 ASTM B408, ASTM B425, ASTM B446, ASTM B472, ASTM B473 ASTM B511, ASTM B512, ASTM B572, ASTM B573, ASTM B574, ASTM B581 ASTM B637, ASTM B649, ASTM B691 ASTM B805

Features

Outstanding high temperature resistance and corrosion resistance, bright surface, excellent straightness.

Applications

1. Ore calciner 2. Heat treatment retort furnace, muffle furnace, fixture and basket 3. Chemical vapor deposition bell furnace 4. Vacuum furnace fixture 5. Ammonia oxidation furnace catalytic net support grid 6. High temperature processing equipment for molten glass 7. Radiant tube 8. Petrochemical converter

Bars

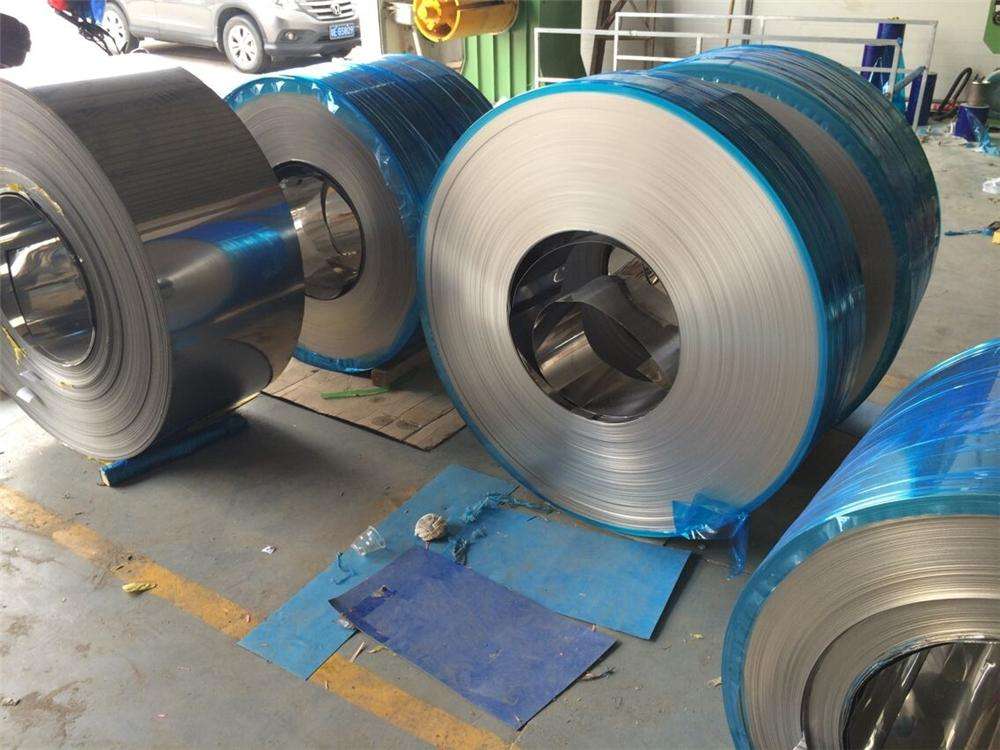

Coils

Product Name

Nickel Alloy Coils

Diameter

0.05-15

Classification

Classification: Spring wire, welding wire, hydrogen wire, bright wire, half-soft wire, soft wire, cold-forging wire, electrolytic wire as well as special-shaped wires.

Material Grade

ASTM B164, ASTM B166 ASTM B473 ASTM B649, ASTM B691 ASTM B805

Features

Good corrosion resistance, high temperature resistance and fatigue resistance, bright surface, precise size, optional hardness and shape.

Applications

Industrial electric furnaces, household appliances, far-infrared devices, petrochemicals, LNG, high-pressure boilers, nuclear power, marine industry, shipbuilding, energy conservation and environmental protection, aerospace and military industry, health care, etc.

Coils

Main Product Steel Types

Hastelloy
Hastelloy C276, Hastelloy C22, Hastelloy C2000, Hastelloy C4, Hastelloy B2, Hastelloy B3, Hastelloy G30, etc.
Inconel
Inconel 600, Inconel 601, Inconel 625, Inconel 690, Inconel 718, Inconel 725, Inconel X-750, etc.
Incoloy
Incoloy 800, Incoloy 800H, Incoloy 800HT, Incoloy 825, Incoloy 925, Incoloy 926 (AL-6XN), etc.
High-Temp Alloy
GH2132, GH3030, GH3039, GH3128, GH4145, GH4169, GH3044, GH4033, GH4738, GH4080, etc.
Super Austenite
904L, 254SMO, 725LN, 724L, 654SMO, 316Lmod, etc.
Duplex Steel
S32205 / S32750 / S32550 / S32707 / S32760
Monel Alloy
Monel 400, Monel K-500
Ti-Ni Shape Memory Alloy
TiNi-01, TiNi-02, TiNi-03, etc.
Cobalt-Base Alloy
Haynes 188, Haynes 25 (L-605), Alloy S-816, UMCo-50, MP-159, FSX-414, X-40, Stellite 6B, GH5188 (GH188), GH159, GH605, K640, DZ40M, etc.
Kovar Alloy
4J29, etc.
Soft Magnetic Alloy
1J90, 1J85, 4J36, 4J28, 3J1, 1J50, 1J79, etc.

Main Steel Grades Production Standards

Hastelloy
Hastelloy C-276
Plate / Strip
ASTM-B575
Seamless pipe
ASTM-B622
Welded pipe
ASTM-B619/B626
Bar / wire
ASTM-B574
Forgings / Flanges / Valves
ASTM-B564
Hastelloy B-3
Plate / Strip
ASTM-B333
Seamless pipe
ASTM-B622
Welded pipe
ASTM-B619/B626
Bar / wire
ASTM-B335
Forgings / Flanges / Valves
ASTM-B564
Hastelloy X
Plate / Strip
ASTM-B435
Seamless pipe
ASTM-B622
Welded pipe
ASTM-B619/B626
Bar / wire
ASTM-B572
Forgings / Flanges / Valves
ASTM-B574
Inconel
Inconel 600
Plate / Strip
DIN 10095 ASTM B168
Seamless pipe
DIN 17751 ASTM B167
Welded pipe
ASTM B163 / B516/517
Bar / wire
DIN 10095 ASTM B166
Forgings / Flanges / Valves
DIN 17754 ASTM B564
Inconel 625
Plate / Strip
ASTM B443
Seamless pipe
ASTM B444
Welded pipe
ASTM B443
Bar / wire
ASTM B446
Forgings / Flanges / Valves
ASTM B564
Inconel 718
Plate / Strip
ASTM B670/B906
Seamless pipe
AMS 5589/5590
Welded pipe
—
Bar / wire
ASTM B637 AMS 5662/5663/5664
Forgings / Flanges / Valves
—
Incoloy
Incoloy 825
Plate / Strip
ASTM B168
Seamless pipe
DIN 10095 ASTM B167
Welded pipe
DIN 17751 ASTM B163/B516/517
Bar / wire
ASTM B166
Forgings / Flanges / Valves
DIN 10095 ASTM B564
High-Temp Alloy
GH4169
Plate / Strip
GB/T 14995/14996 GJB 1952A/3317A GJB 33184
Seamless pipe
GB/T 15062 GJB 2297A
Welded pipe
—
Bar / wire
GB/T 14993/14994 HB6702 YB/T5245 GJB 2611A/3165A
Forgings / Flanges / Valves
GB/T 14997/14998
GH3030
Plate / Strip
GB/T 14995/14996 GJB 1952A/3317A GJB 33184
Seamless pipe
GB/T 15062 GJB 2297A
Welded pipe
—
Bar / wire
GB/T 14993/14994 HB6702 YB/T5245 GJB 2611A/3165A
Forgings / Flanges / Valves
GB/T 14997/14998
GH4145
Plate / Strip
GB/T 14995/14996 GJB 1952A/3317A GJB 33184
Seamless pipe
GB/T 15062 GJB 2297A
Welded pipe
—
Bar / wire
GB/T 14993/14994 HB6702 YB/T5245 GJB 2611A/3165A
Forgings / Flanges / Valves
GB/T 14997/14998
Ni-Ti Shape Memory Alloy
NiTi-01

GB 24627 (tube), GB/T 39985 (plate), GB/T 39989 (bar/wire), YST971 (wire), YS/T 1136 (medical seamless tube for nickel-titanium shape memory alloy)

The American standard is based on ASTM standards, and the products also implement ASME standards.
